Porcellana Manicotto intrecciato elettrico fabbricante
SHENZHEN HUIYUNHAI TECH CO., LTD



Manicotto intrecciato, vita variopinta

Casa ProdottiManicotto intrecciato elettrico

Manica intrecciata ignifuga dell'animale domestico flessibile automobilistico

Manica intrecciata ignifuga dell'animale domestico flessibile automobilistico

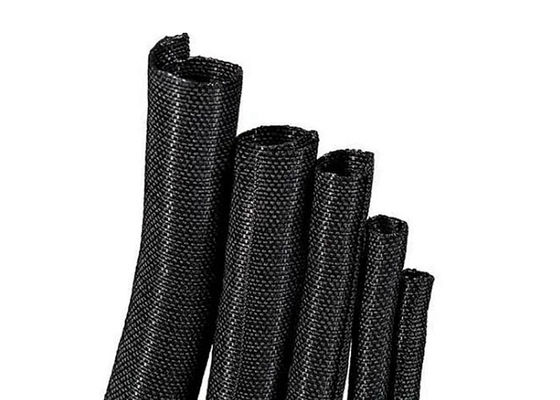

Automotive Flexible Pet Flame Retardant Braided Sleeve
Automotive Flexible Pet Flame Retardant Braided Sleeve

Dettagli:

Luogo di origine: Shenzhen della Cina
Marca: Huiyunhai
Certificazione: UL, RoHS, REACH
Numero di modello: HYH

Termini di pagamento e spedizione:

Quantità di ordine minimo: 500 metri
Prezzo: negotiable
Imballaggi particolari: cartone standard dell'esportazione
Capacità di alimentazione: 500.000 metri al mese
Contatto
Descrizione di prodotto dettagliata
Nome: Manicotto intrecciato cavo dell'animale domestico Colore: incrocio rosso e nero
Funzione: Protezione del cavo Termine d'esecuzione: 5 giorni
Caratteristica: Ignifugo Campione: libero
Evidenziare:

Pet Cable Braided Sleeving

,

Flexible Pet Braided Sleeve

Automotive Flame Retardant Braided Sleeve For Wire Cable



Widely used in HDMI, DVI cable, wire and cable, computer cable, computer peripheral line, computer case wire, cable, audio video line, network line jumper wire, coaxial cable, broom, platoon line, AV line, automotive wiring harness, dc lines, lighting, air conditioners, refrigerators, washing machines, household appliances and fiber optic cable, motorcycles, cars, high-speed rail, trains, planes, large machinery line maintenance and beautification effect.





Premium Cable Management:Crafted with durable & flexible neoprene, not easy to deform, dustproof, waterproof , breathable and washable. Protect multiple cables without tearing while protecting cords from foot traffic & chewing pets.



Polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors. Totally expanded the sleeving can reach at least 1.5 times the initial dimension.



Features of PET Braided Expandable Cable Sleeve For Wire Cable


Materia l: PET
Diameter: custom
Length: custom
Expanding Ratio: 200%
Color: colorful
Melting point: 230 °C ± 5
Tinting strength: 100 ± 5 °C
Flame Retardant: yes

Flammability class: UL94VO/VW-1/V2.
Temperature endurance: -50 °C~ +150 °C
PET sleeve quality: UL,SGS,Rohs,Reach,etc.



PET Expandable Tube is braided from polyethylene terepthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.





Product feacture of PET Braided Expandable Cable Sleeve For Wire Cable



The braided sleeve is made of environmentally-friendly PET silk, which has good flexibility, flame retardancy, wear resistance and heat insulation. The product has a smooth surface, bright color and a variety of patterns. Products are widely used in computer power lines, audio and video lines, automotive, aviation, wire and cable industries, to protect and beautify.


1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.





Dimensions of PET Braided Expandable Cable Sleeve For Wire Cable

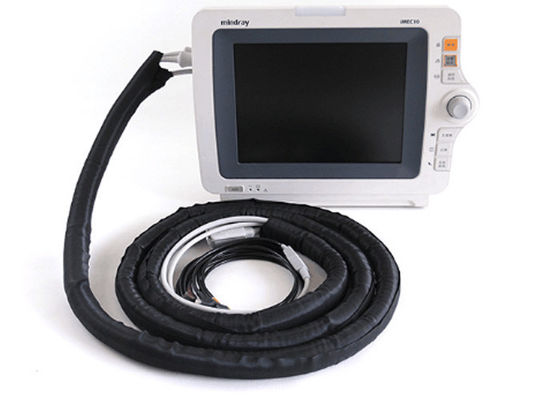

Manica intrecciata ignifuga dell'animale domestico flessibile automobilistico 0



Notes of cable sleeve



1.  Nominal size indicates the flat width.

2.  The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3.  This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4.  Special packing, sizes, and colors can be supplied upon request.

5.  All numerical data are average or typical values, not including customized sizes.





















Manica intrecciata ignifuga dell'animale domestico flessibile automobilistico 1































Manica intrecciata ignifuga dell'animale domestico flessibile automobilistico 2
